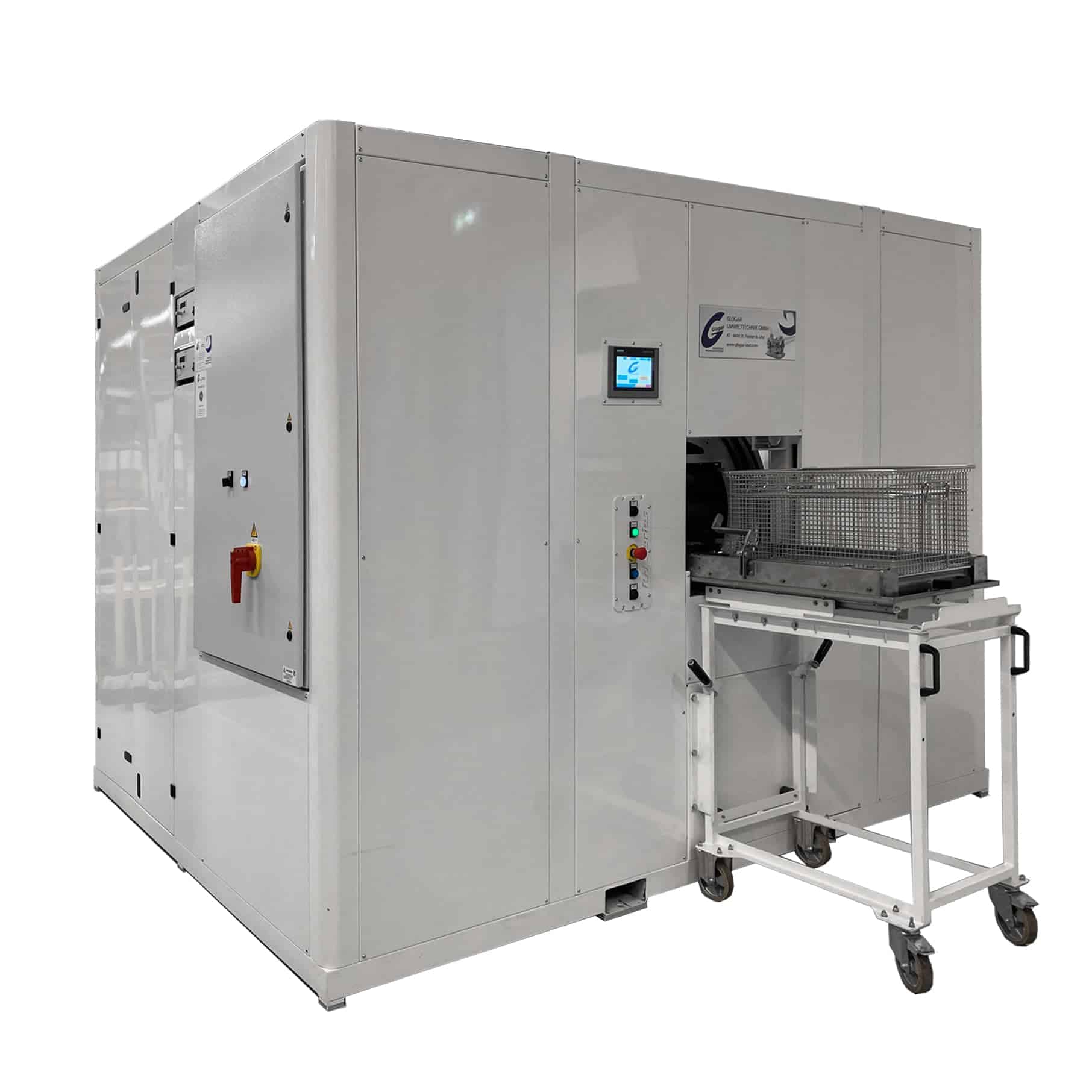

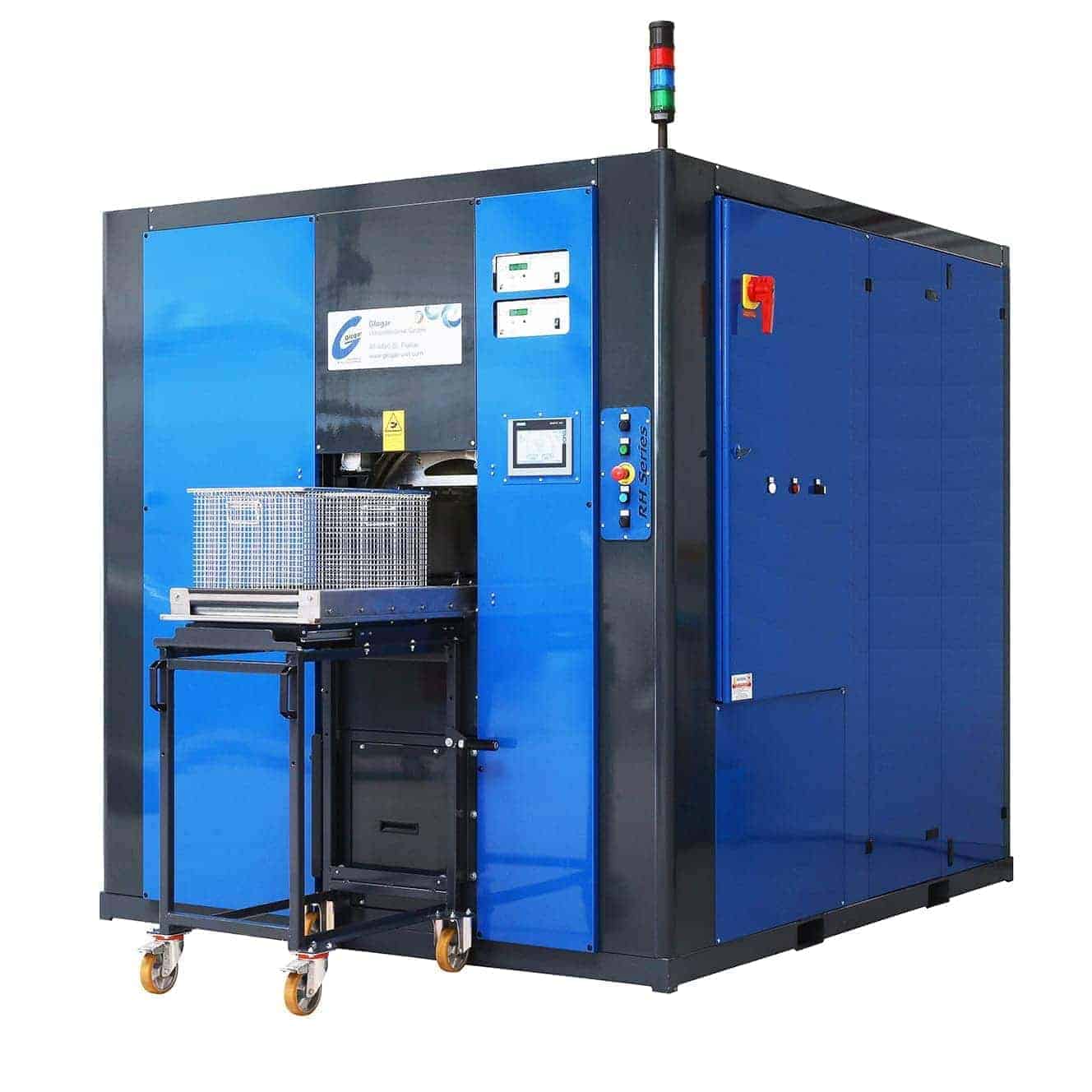

Chamber cleaning system RH (V)
Chamber cleaning system RH (V)
The type RH is a compact, automatic precision cleaning system that meets the highest demands in terms of cleaning/degreasing, rinsing and drying results, environmental friendliness and economy.
The spray-flood cleaning system has a fully automatic process sequence and is suitable for the use of aqueous cleaning media. The RH precision cleaning system combines a wide range of cleaning technologies in one system. The components to be cleaned are cleaned or optionally rinsed using the spray process and pressure flooding, thus meeting the highest cleanliness requirements.
The spray registers can be permanently mounted in the cylindrical working chamber or, on request, designed as a rotating nozzle system. We achieve a highly efficient and particle-free cleaning effect even with complex part geometries. On request, the RH series cleaning systems can be equipped with a variety of features such as medium filtration in the washing and rinsing process, automatic detergent dosing or automatic loading systems.
| Type | Basket size (D x W x H) |
|---|---|
| RH 500 | 520 x 300 x 200 mm 480 x 300 x 200 mm (Schäfer II) |
| RH 600 | 600 x 400 x 400 mm (Euro basket) 670 x 480 x 300 mm 670 x 480 x 400 mm |
| RH 1000 | 1,000 x 600 x 500 mm any size possible |
* Special basket sizes available on request
You are currently viewing a placeholder content from YouTube. To access the actual content, click the button below. Please note that doing so will share data with third-party providers.
Standard equipment
- Spray cleaning and pressure flooding of the working chamber
- Multi-sided spray and flood system for all-round component application
- Fully insulated working chamber and cleaning tank
- Hot air blast drying
- All wetted parts made of stainless steel
- Shopping basket dynamics: rotate, oscillate, swivel the shopping basket incl. speed adjustment
- Stainless steel pump(s) with mechanical seal
- Coarse filter (stainless steel strainer basket) in the return flow of the working chamber
- Waterproof connection with level compensation
- Siemens S7-1200 control system with KTP touch panel
- Weekly timer for heating the cleaning and rinsing baths
- Data logger with USB port for recording all relevant machine processes
- All-round accessibility of the system components
- Automatic opening / closing of the working chamber door
- Floor tray / drip tray
- 3-color traffic light including acoustic signal
Special options
- 2-tank system (wash/rinse) or 3-tank system
- Automated loading systems
- Electropolished working chamber
- Automatic chemical dosing
- Water treatment / circulation treatment facilities
- Automated tank emptying device
