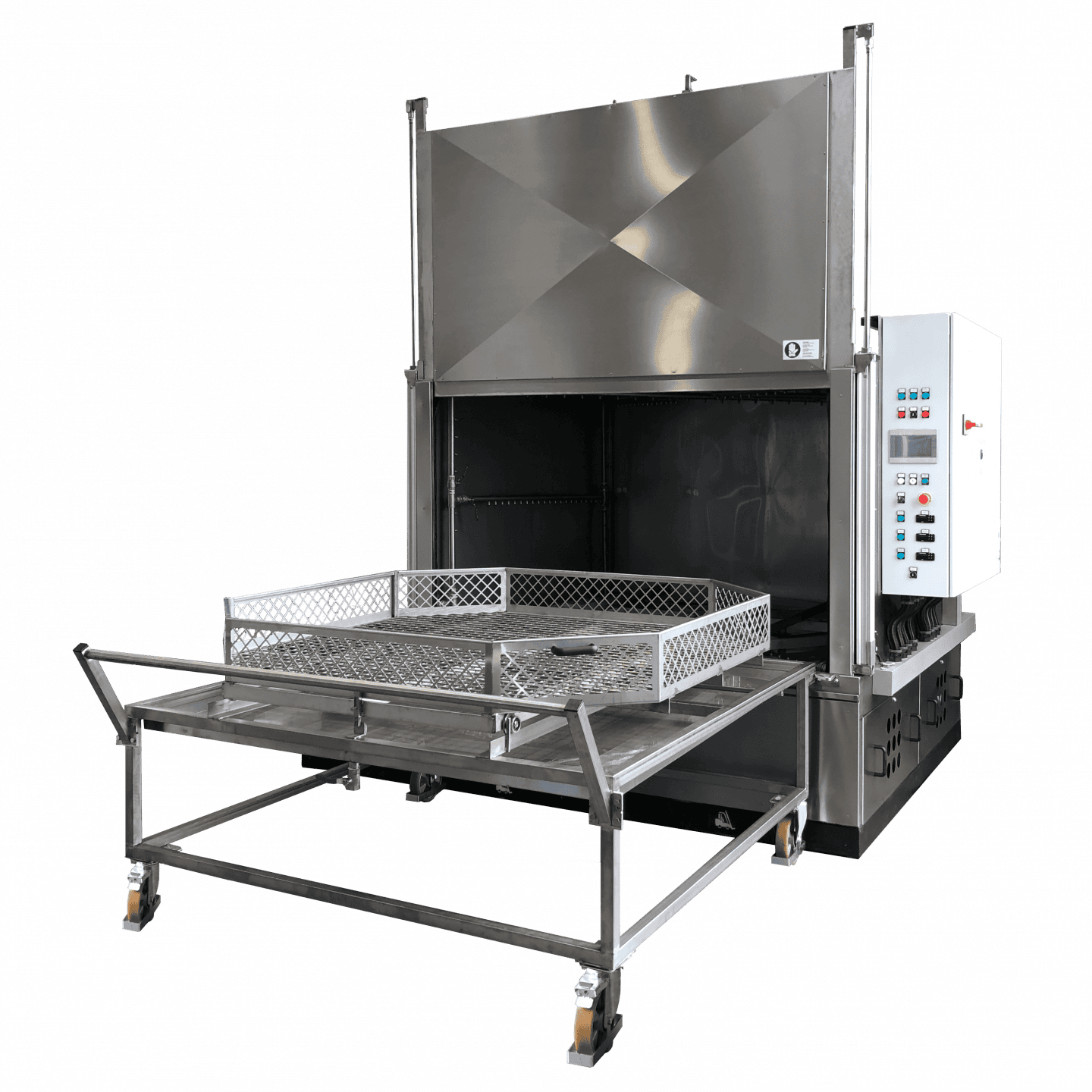

Spray cleaning system L240
Spray cleaning system L240
With the L240 spray cleaning system, Glogar offers an optimum solution for cleaning large-volume parts.
Quick and economical cleaning, usually of very large parts, is carried out easily and practically in the L240 spray cleaning system.
Cleaning is carried out by a rigid nozzle system on all sides, while the driven loading basket is slowly rotated past the specially aligned nozzles. The L240 spray cleaning system and all of the system's units are made entirely of stainless steel, even in the standard version.
Features such as steam extraction, automatic fresh water refilling, insulation of the entire system and the loading trolley with basket are also included as standard. The spray cleaning system can be individually adapted to your application thanks to many other additional equipment features.
Special features of the L240 spray cleaning system
The L240 spray cleaning system is manufactured as a 1-, 2- or 3-tank version; all process steps are carried out in one process chamber.
The washing and rinsing processes are each run via separate pipelines and nozzle systems in order to minimize media carryover.
Technical data
1.800 x 1.800 mm basket diameter
1.000 mm usable height
max. 700 kg load weight
Standard equipment
- Housing, piping and detergent tank made of stainless steel
- Housing insulation with cladding made of stainless steel foil sheet
- Steam vapor extraction with forced ventilation and condensate return
- Extendable basket incl. feeder trolley / transport trolley
- Spray system with wide jet nozzles made of stainless steel
- Lifting door (made entirely of stainless steel)
- Electric heating, thermostatically controlled (up to 80°C)
- Automatic fresh water refill
- Stainless steel circulation pump with mechanical seal
- Safety shutdown of the heating and pump (level control)
- Electromotive basket drive with end position positioning
Special options
- Fine filter in the pressure line of the cleaning bath
- Fine filter in the pressure line of the rinsing bath(s)
- Convection drying / hot air drying
- Manual intervention for high-pressure cleaning incl. viewing window and chamber lighting
- Front table (T-table) with 2 transverse sliding trolleys in front of the cleaning system
- Tank emptying device
- Automatic chemical dosing
- Automated loading and unloading of the loading trolley (especially for loading weights over 1,000 kg)
- E-spray tube - upper nozzle tube height-adjustable
- Plug-in basket surround
- Oil separator / coalescence separator / grease separator
- 7-day timer for heating
- Steam vapor condenser for exhaust air-free operation
many other special options possible...
