Ultrasonic Cleaning System – ULTRA Series

The ultrasonic system of the "ULTRA" series was developed for the cleaning of repair parts.

Our ultrasonic system with pneum. Our ultrasonic system with pneumatic goods lift and oil separator has proven itself in the cleaning of heavily soiled components and is often used for the treatment of motors, pumps or other components.

How the ultrasonic system works

You are currently viewing a placeholder content from YouTube. To access the actual content, click the button below. Please note that doing so will share data with third-party providers.

More Information

Unblock content Accept required service and unblock content

immediately available

Type	Usable platform dimensions	Usable height	Max. loading weight	Tank volume	Ultrasonic power	Ultrasonic frequency
ULTRA 100	620 x 320 mm	350 mm	80 kg	315 liters	1,000 watts rms 2,000 watts peak	20/40kHz (multi-frequency), other frequencies on request
ULTRA 200	850 x 450 mm	400 mm	100 kg	435 liters	2,000 watts rms 4,000 watts peak	20/40kHz (multi-frequency), other frequencies on request
ULTRA 300	1.050 x 550 mm	450 mm	300 kg	655 liters	3,000 watts rms 6,000 watts peak	20/40kHz (multi-frequency), other frequencies on request
ULTRA 500	1.250 x 650 mm	450 mm	300 kg	845 liters	4,000 watts rms 8,000 watts peak	20/40kHz (multi-frequency), other frequencies on request

Standard equipment

Fabric lift incl. oscillation movement during the cleaning process

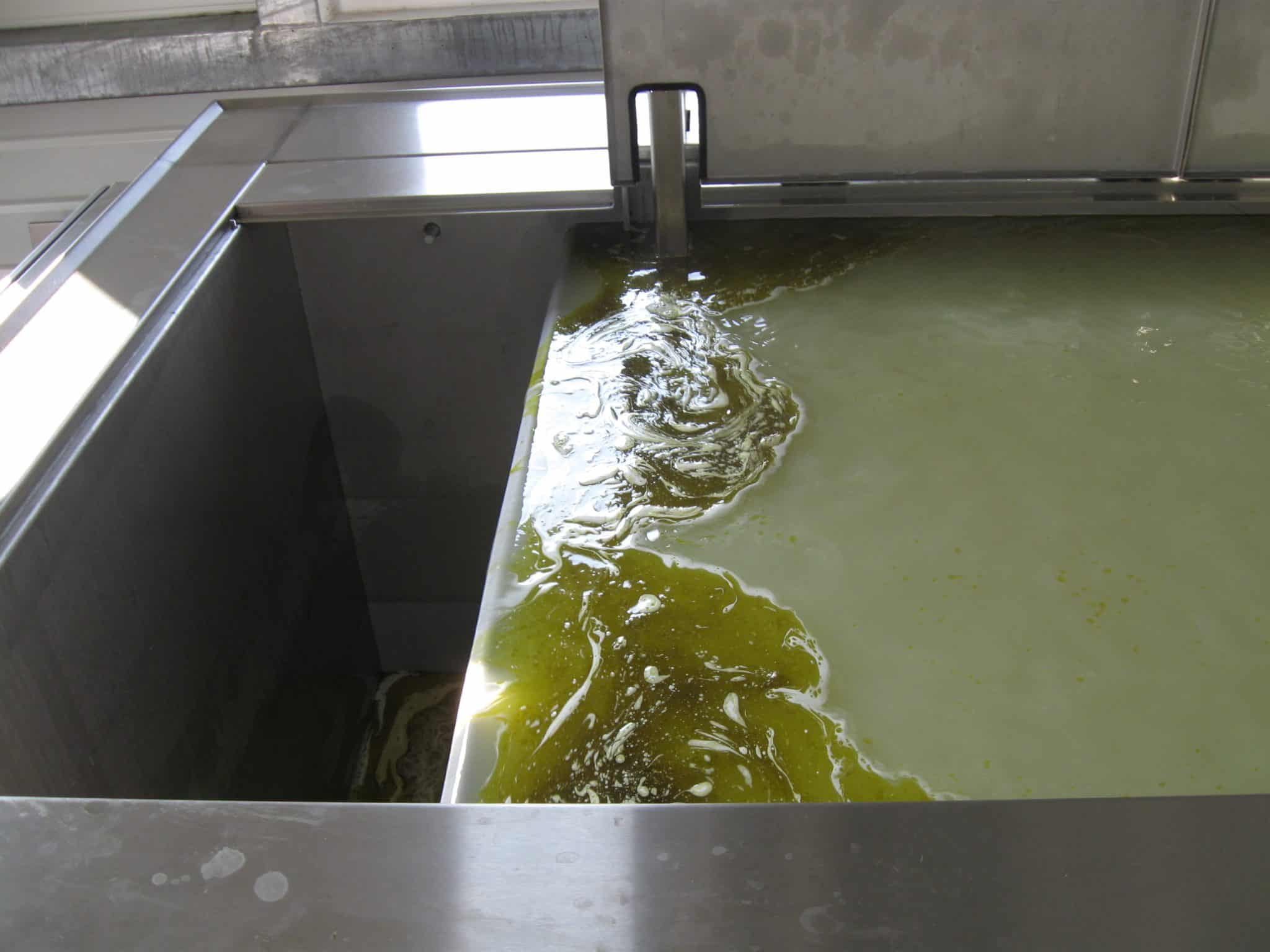

Surface rinsing for bath maintenance incl. oil separator
Ultrasonic sonication from the floor (frequency: 25 kHz)
Complete cleaning system Sound- and noise-insulated
Manual, insulated hinged lid (easy to open and close)
Forklift adapter
Blow-off gun for drying the components as far as possible

Special options

Medium filtration using cartridge or bag filters
Ultrasonic sonication on the side walls or as 3-sided sonication; it is also possible to change the operating frequency
Chamber edge extraction for vapor damage extraction
Fresh water filling and refilling
Detergent dosing and post-dosing
Automated lid opening and closing
Weekly timer for heating
