Used RH S 470 spray cleaning system
Used RH S 470 spray cleaning system
In stock
REQUEST NOW
for new installation: Spray rotary cleaning system RH S
Heading #1 | Heading #2 |
|---|---|
Machine Type | Aqueous cleaning machine |
Manufacturer | Glogar |
Model | RH S 470 |
Year of manufacture | 2023 |
Operating hours | 4 |
Condition | as new (exhibition machine) |
Technical data
470 x 3,200 x 200 mm basket diameter
max. 100 kg load weight

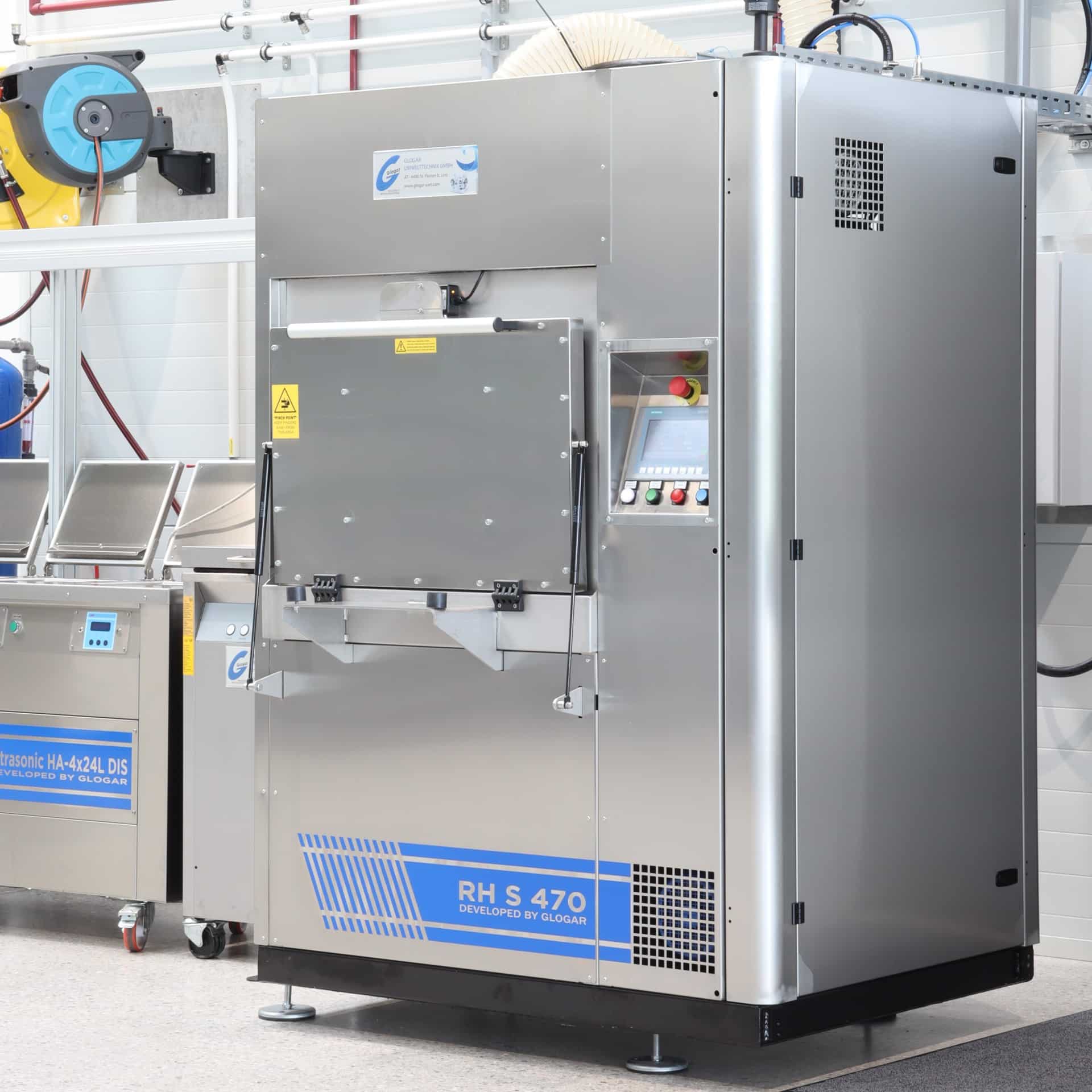

The "RH S" spray cleaning system is a compact, space-saving, automatic cleaning system that meets high demands in terms of cleaning/degreasing and drying results.
The components can be cleaned with the basket stationary, swiveling/oscillating and rotating. The nozzle system - several nozzle holders on the long and short sides - are permanently mounted in the working chamber.
Further technical data
- Dimensions of the system: 1,425 x 1,920 x 1980(h) mm (dimensions including open loading door)

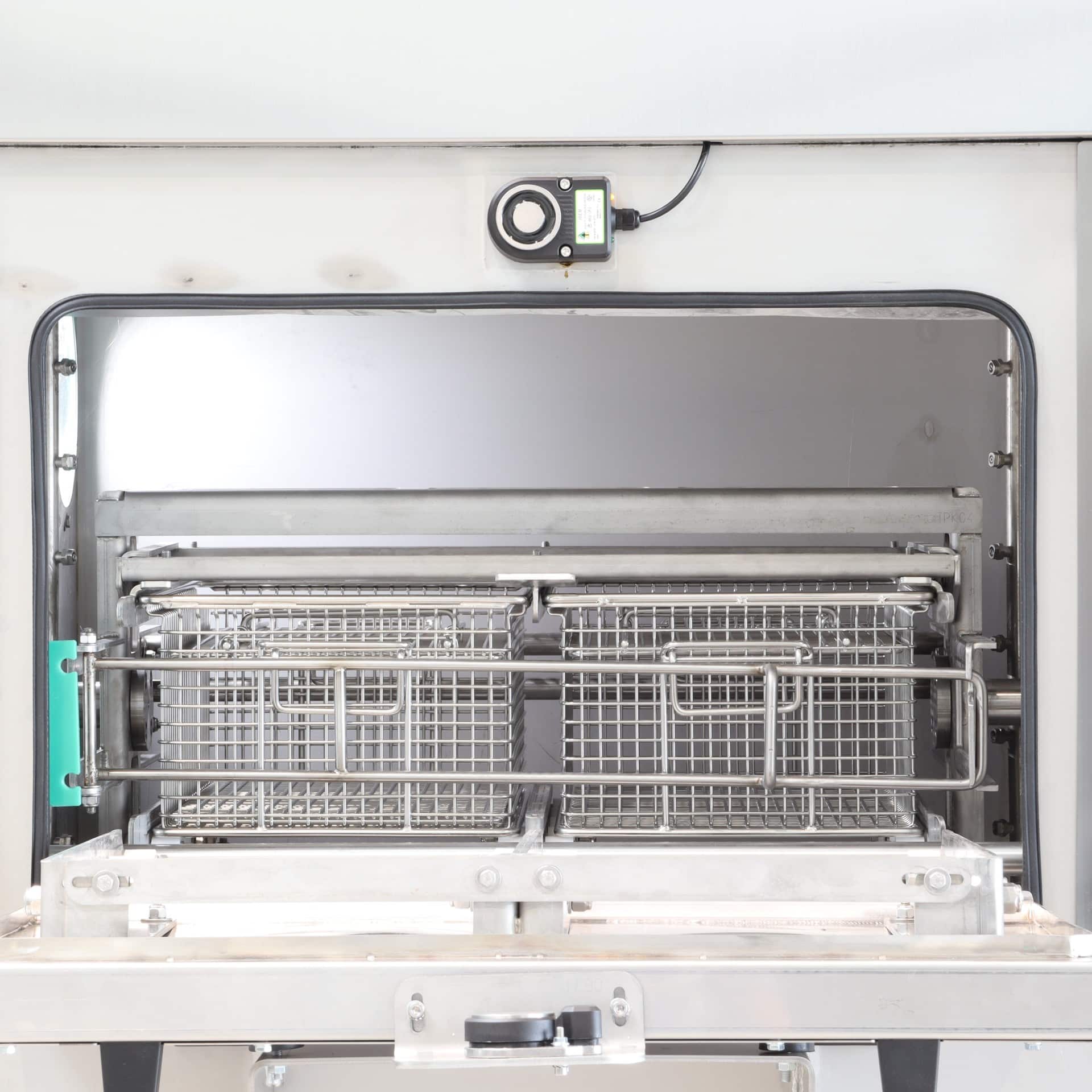

- 2 baskets can be washed in parallel (simultaneously)
- Spray pressure (washing): 4 bar, circulation capacity: 360 liters/min.
- Control system: Siemens S7-1200 with KTP700 touch panel
- Connected load (electrical): approx. 25 kW
Equipment
- Hot air drying (12 kW)
- Compressed air pulse blow-off
- Steam vapor extraction
- Stainless steel exterior cladding
- Preparation for retrofitting an oil separator
- Topline bag filter for medium care

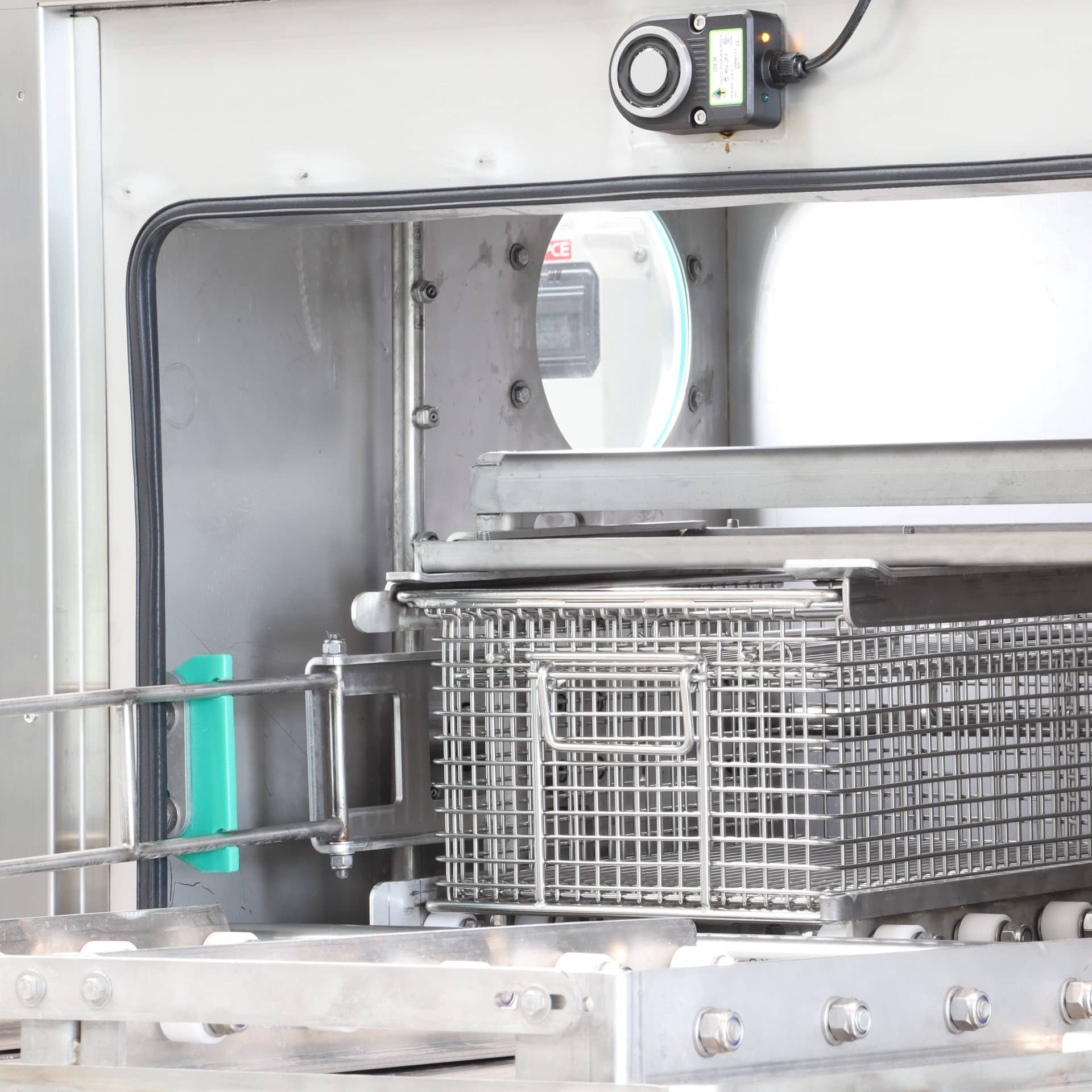

- 2 stainless steel shopping baskets 470 x 320 x 200(h) mm
